SolarWorld

Sunmodule

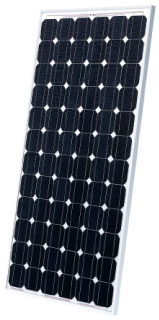

SW 165/175 Mono

The Sunmodule heralds an innovative new module conceptfrom SolarWorld. The fully automated production process at the SolarWorld factories creates a module quality that is consistently high, which in turn will ensure high yields for the long term.

The glass is set deep into the module frame and they are firmly attached to each other by silicone that is applied with continuous precision. This guarantees exceptional rigidity for the entire module and stops any possible loosening of the frame as a result of strong outward forces in cases such as sliding of heavy snow. Tests carried outin accordance with IEC 61215, applying loads up to 5.4kN/m2, confirm that the module can withstand high loads such as heavy accumulations of snow and ice.

The patented, flat and compact junction box provides perfect protection against corrosion, as well as a capacity to rapidly dissipate any excess heatproviding lower operating temperature. The junction box is reliably connected by a solid, welded bond to guarantee lasting functionality. In addition, high-quality, robust cables with factory-equipped connectors are used. The ability to recycle the modules and a 25-year performance warranty are the finishing touches to this top-quality product.

SW 25/40/50

SolarWorld offers an innovative module concept with designs created specifically for off-grid applications. High efficiency crystalline silicon cell technology leads to an expectional performance.
Easy installation is assured through the field-accessible junction box and 4 mountingholes.
This top-quality product represents the ideal solution for every application.

SolarWorld Specifications
	SW 25	SW 40	SW 50	SW 165	SW 175
Cell	Mono silicon	Poly silicon	Mono silicon	Mono silicon	Mono silicon
No. of Cells and Connections	36 in series	36 in series	36 in series	72 in series	72 in series
Open Circuit Voltage (Voc)	20.8V	21.3V	21.0V	44.0V	44.0V
Maximum power point voltage (Vmpp)	16.8	16.8	16.2	35.3V	35.8V
Short Circuit Current (Isc)	1.90A	2.40A	3.401A	5.3A	5.55A
Maximum Power Point Current (Impp)	1.55A	2.38A	3.10A	4.89A	4.95A
Maximum System Voltage	DC 120V	DC 120V	DC 1000V	DC 1000V	DC 1000V
Series Fuse Rating Max	10A	10A	15A	15A	15A
Type of Output Terminal	Junction box	Junction box	Junction box	Lead wire with connector	Lead wire with connector
Dimensions (LxWxD)mm	550 x 449 x 38	635 x 550 x 38	861 x 536 x 34	1610 x 810 x 34	1610 x 810 x 34
Weight	3.4kg	4.4kg	5.5kg	15.0kg	15.0kg
