Alzone Ground Mount Racking

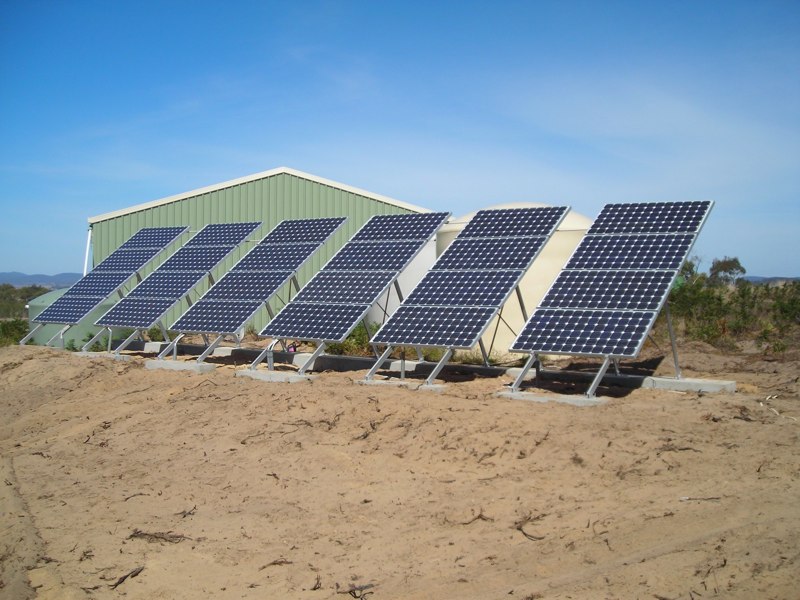

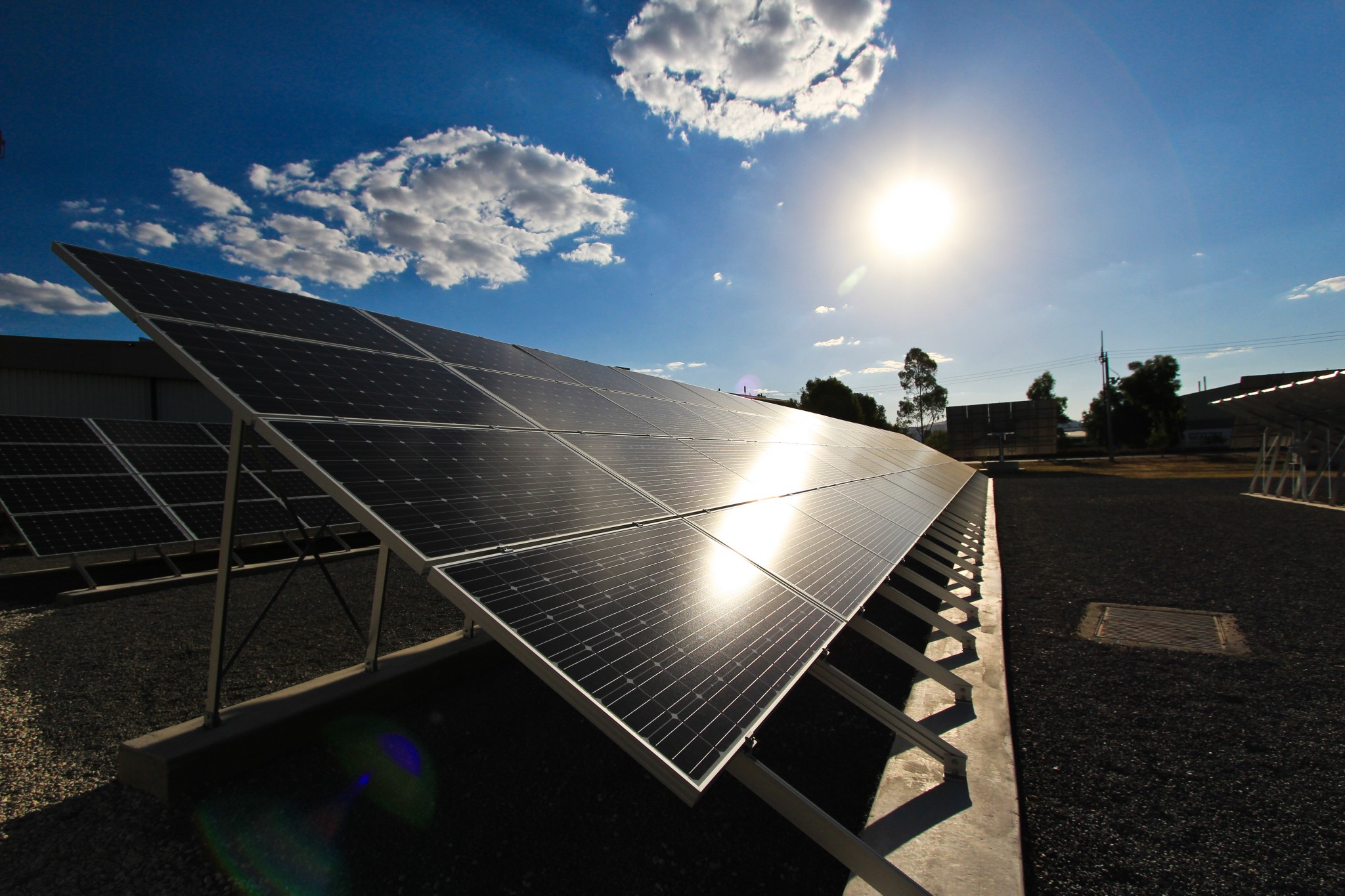

ALZONE Ground Mount Kits include cross bracing struts for additional array strength. The angle of the array may be altered with different leg lengths, and kits are available from 20° to 45° kits.

Need a quote for racking click here

Compliance Certificate

AS/NZS 1170.0:2002

AS/NZS 1170.2.2002

AS/NZS 1664.1.1997

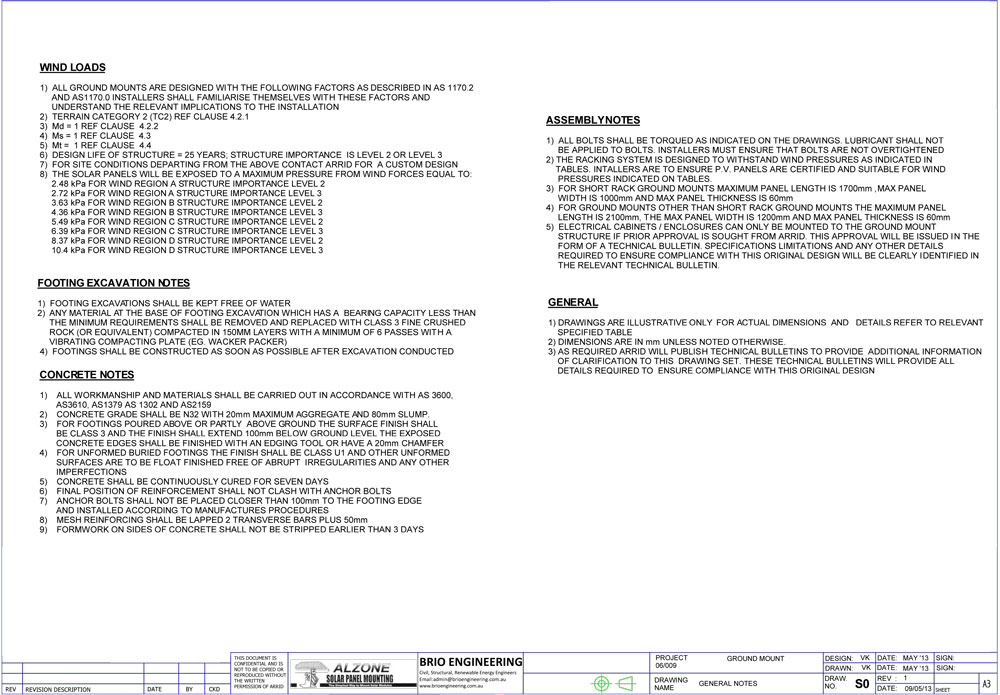

Wind and Zoning

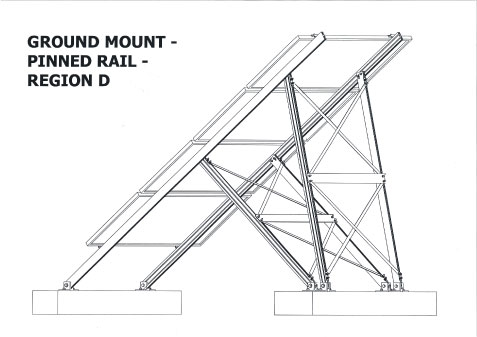

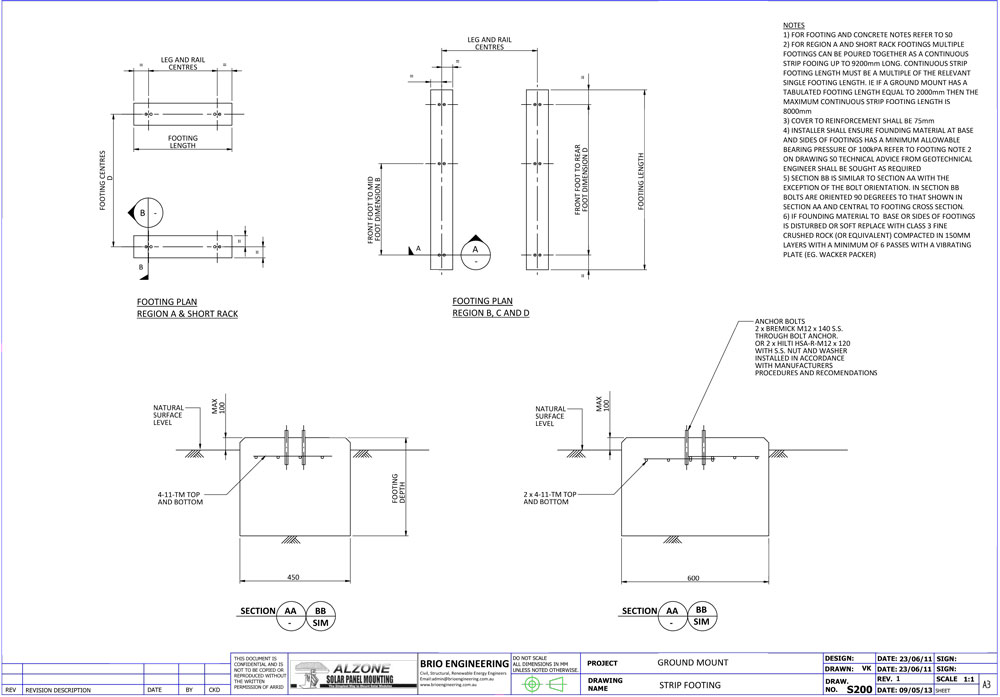

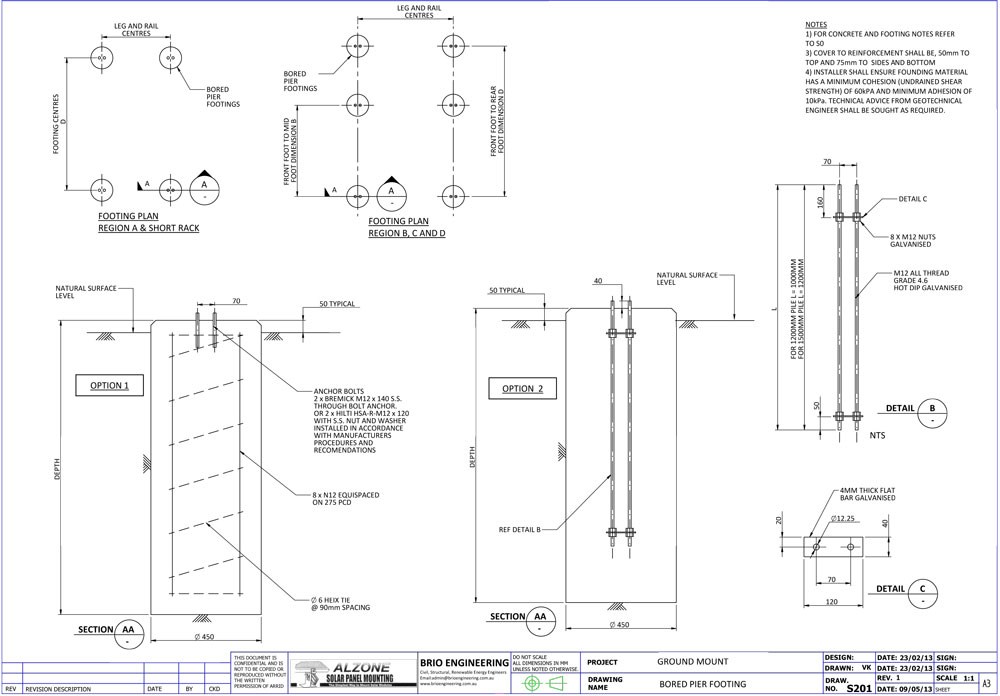

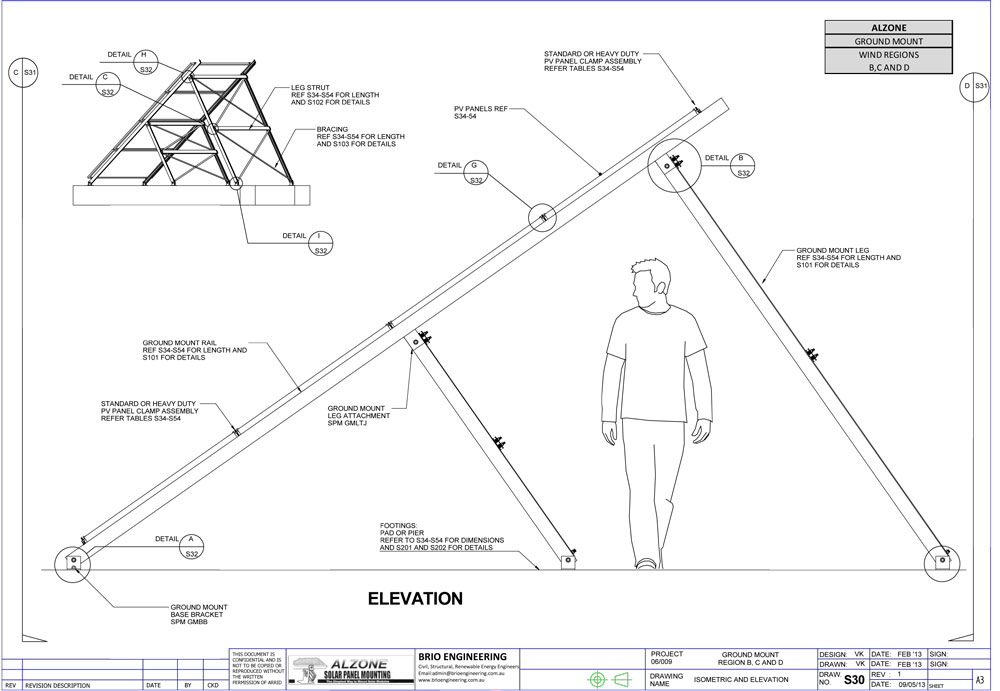

GROUND MOUNT for ZONE D

Alzone racking kits for zone D (cyclonic areas) feature extra centre leg supports along with additional bracing and central leg struts.
These are the strongest of the ground mounts and are supplied with the heaviest duty mounting feet and have stronger footing requirements.
All aluminium rail sections and feet are fully anodized for improved appearance and increased durability.
Stainless steel bolts, nuts and washers are supplied as standard in these kits.
Kits are pre drilled for ease of assembly.
All anodized clamps & stainless steel “T” bolts for securing solar modules are included with kits.
Array angles of 20 to 45 degrees are available.

Racking is component and system engineer certified.

Compliance Certificate

AS/NZS 1170.0:2002
AS/NZS 1170.2.2002
AS/NZS 1664.1.1997

GROUND MOUNT KIT for ZONE C
Alzone C kits are similar in construction to zone D racking kits.
These kits come supplied with slightly different feet and have different footing requirements.
All aluminium rail sections and feet are fully anodized for improved appearance and increased durability.
Stainless steel bolts, nuts and washers are supplied as standard in these kits.
Kits are pre drilled for ease of assembly.
All anodized clamps and stainless steel “T” bolts for securing the solar modules are provided in kits.

Array angles of 20 to 45 degrees are available.

Racking is component and system engineer certified.

Compliance Certificate

AS/NZS 1170.0:2002
AS/NZS 1170.2.2002
AS/NZS 1664.1.1997

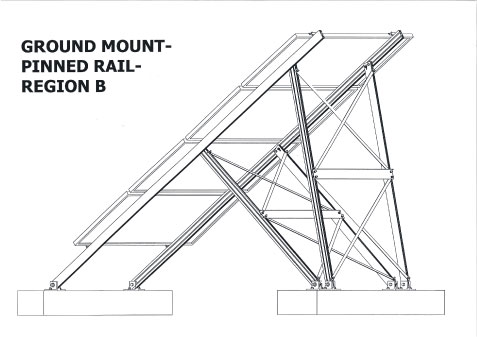

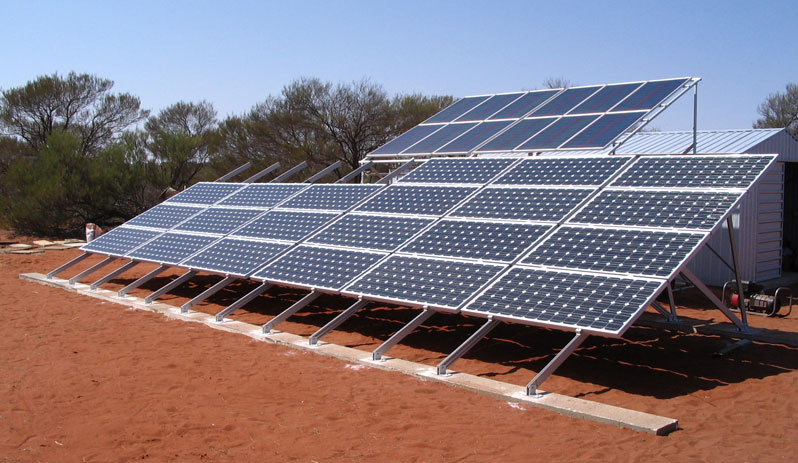

GROUND MOUNT KIT for ZONE B

Alzone B kits are similar in construction to zone D racking kits.
These kits come supplied with slightly different feet and have different footing requirements.
All aluminium rail sections and feet are fully anodized for improved appearance and increased durability.
Stainless steel bolts, nuts and washers are supplied as standard in these kits.
Kits are pre drilled for ease of assembly.
All anodized clamps and stainless steel “T” bolts for securing the solar modules are provided in kits.
Array angles of 20 to 45 degrees are available.
Racking is component and system engineer certified.

Compliance Certificate

AS/NZS 1170.0:2002
AS/NZS 1170.2.2002
AS/NZS 1664.1.1997

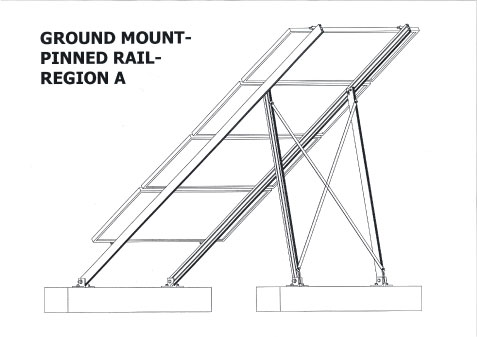

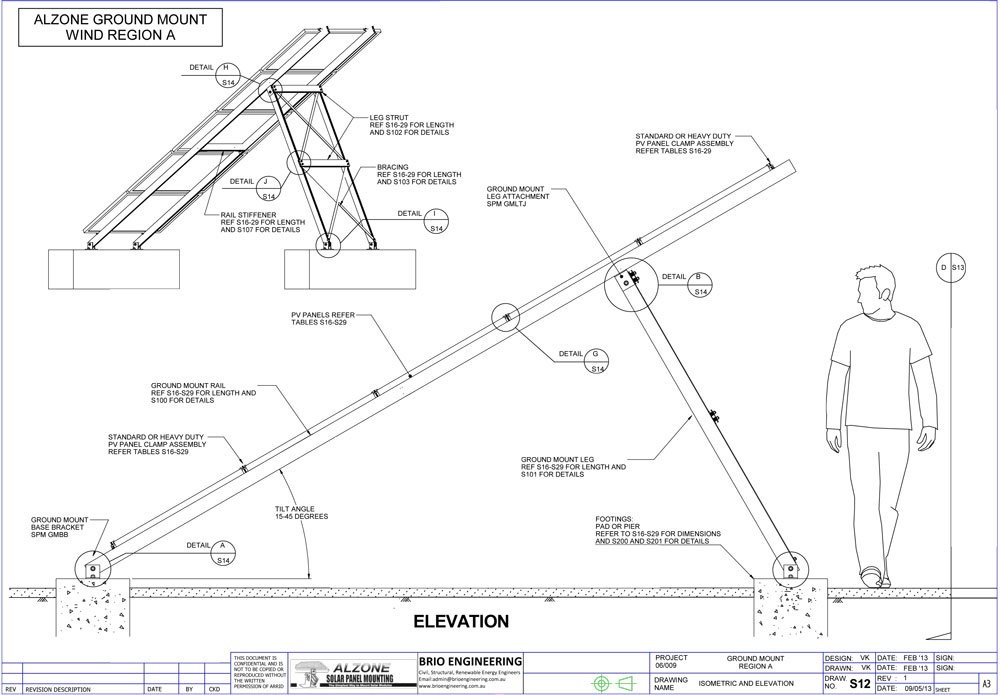

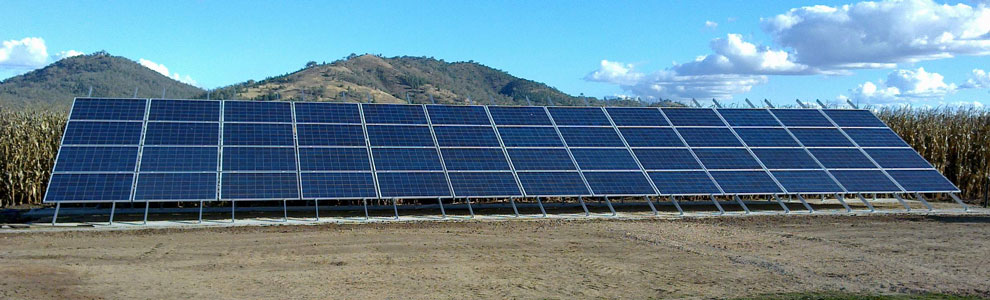

GROUND MOUNT KIT for ZONE A

Alzone racking kits are designed for the lighter wind loads
These kits come supplied with slightly different feet and have different footing requirements.
All aluminium rail sections and feet are anodized for increased durability.
Stainless steel bolts nuts and washers are supplied as standard in these kits.
All anodized clamps and stainless steel “T” bolts for securing the solar modules are provided in kits.
Array angles of 20 to 45 degrees are available.
Racking is component and system engineer certified.


Compliance Certificate

AS/NZS 1170.0:2002
AS/NZS 1170.2.2002
AS/NZS 1664.1.1997

NON FLANGE RAIL
ASPMR2400 RAIL NON FLANGE
ASPMR2840 RAIL NON FLANGE
ASPMR3150 RAIL NON FLANGE
ASPMR3500 RAIL NON FLANGE
ASPMR3894 RAIL NON FLANGE
ASPMR4220 RAIL NON FLANGE

Easy-Rail
ASPMRA2840 Solar Easy-Rail
ASPMRA3150 SOLAR EASY-RAIL
ASPMRA3500 SOLAR EASY-RAIL

Feet

FOOT CORGATED
SPMFC	FOOT	$8.06

FOOT FLAT
SPMFF	FOOT	$8.06

FOOT TEE
SPMFTEE	FOOT	$8.06

Angle Brackets
SPMANGLE	BRACKET 87 X 65 X 77	$6.48

Angle Brackets
SPMFA10	ZONE D FOOT	$10.64

Angle Brackets
SPMFA6	ZONE A FOOT	$6.68

Joiner

Rail Joiner
SPMRJOINER

Clamps

END CLAMPS
SPME1US-32MM
SPME1KY-36MM
SPME1SH-46MM
SPME1SW-36mm
SPMEBP-50MM
SPME1SW-34mm
SPME1SUN-39mm

RAIL BOLTS
SPMBSH
SPMBUS

MID CLAMPS
SPM1	PANEL MID CLAMP	$3.90
SPM2	PANEL DOUBLE MID CLAMP	$6.05

RAIL BOLTS
SPMBSH
SPMBUS

Rail Bolts

Rail Bolts

RAIL BOLTS
SPMBSH
SPMBUS
